Therapeutic Infusion Set
Overview

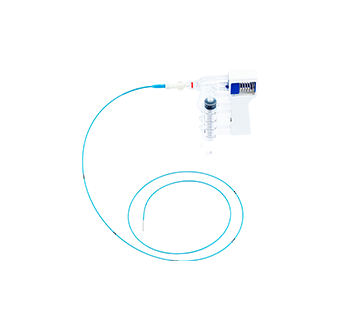

Percutek Therapeutic Infusion Set contains a syringe and an injection pump that manually adjusts the amount of liquid injected per pump. By flushing thrombus with short-term liquid medicine, the total amount of medicine and treatment time can be reduced, and the risk of bleeding can be reduced to the greatest extent.
Features and Benefits
Precisely controlled administration
More precisely controlled administration of thrombolytic agent from 0 to 1ml per injection. Thrombolytic time is reduced

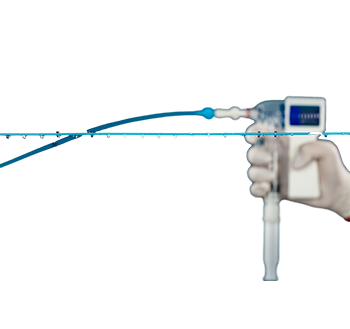

Injection pump facilitates operators use this device with one hand. The error rate of doctor operation is greatly reduced
Constant and forceful 3D infusion
Constant and forceful infusion of therapeutic agents from proximal to distal end of infusion segment, ensures uniform thrombus dissolution
Versatility
Infusion segment lengths range from 50mm to 500mm with 50mm increment
Catheter lengths include 450mm, 900mm and 1350mm
4Fr and 5Fr in diameter
Distance indicator design
This distance indicator allows operators understand how deep the catheter is inserted without using fluoroscopy. And it also can be used to indicate if there is any catheter movement
Specification
|
Profile |
Catheter Length |
Infusion Area Length |
Set |
|
4Fr/5Fr |
45cm |
5-20cm, 5cm increment |
2-pieced/4-pieced |
|
90cm/135cm |
5-50cm, 5cm increment |
2-pieced/4-pieced |
Indication
Therapeutic Infusion Set is intended for the administration of fluids, including thrombolytic agents and contrast media, into the peripheral vasculature. Suitable for patients with peripheral vascular embolism.
